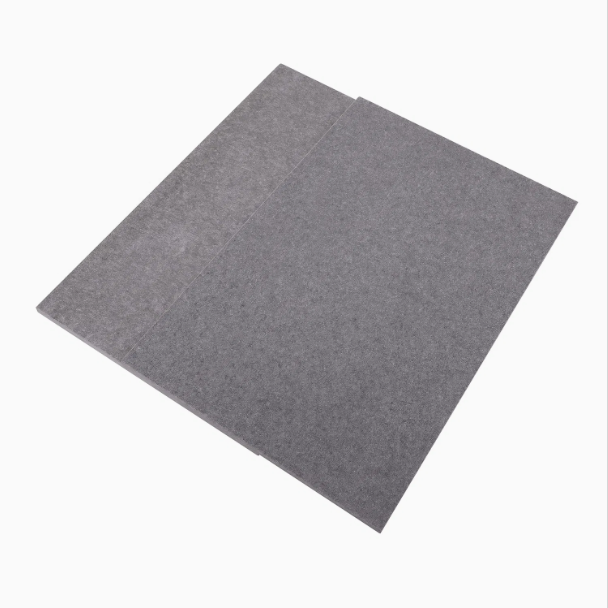

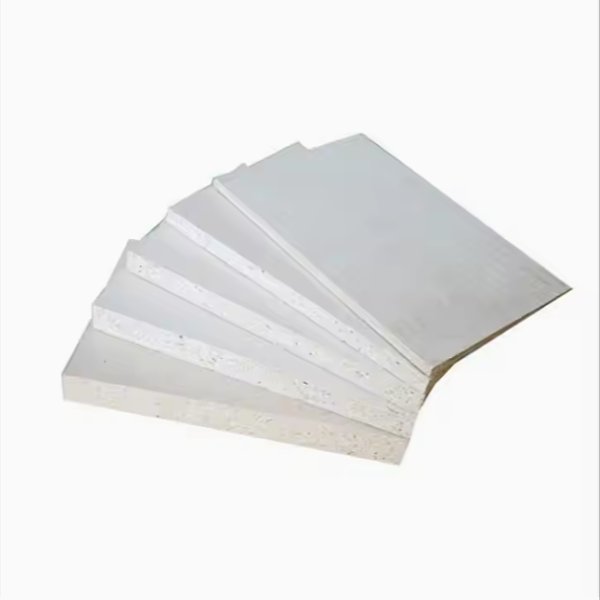

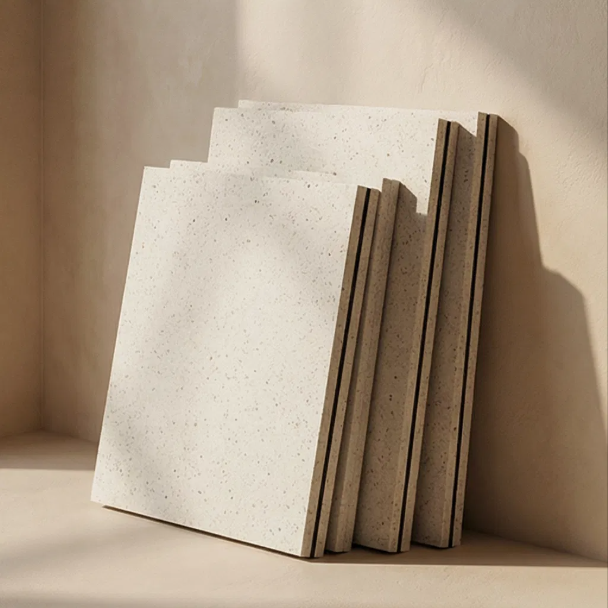

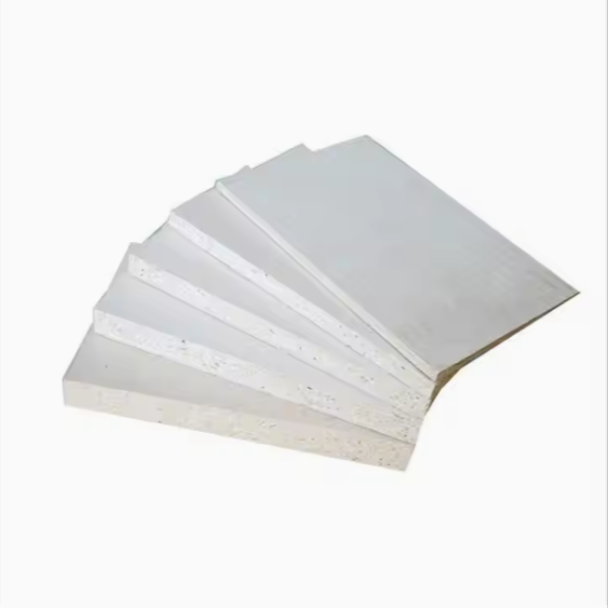

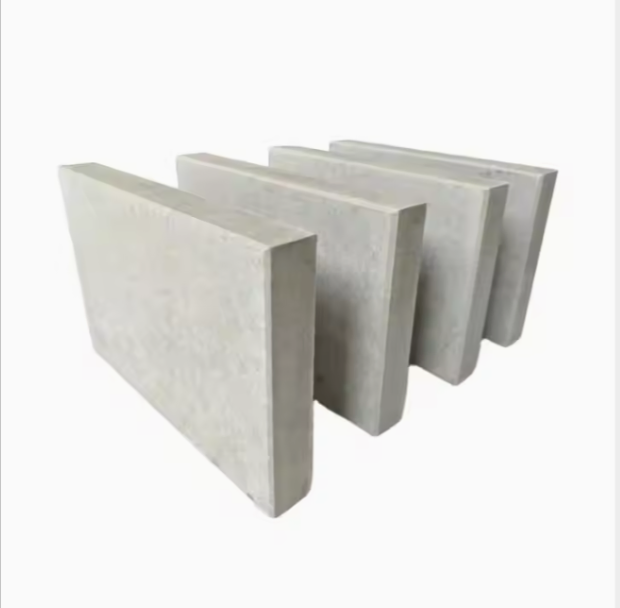

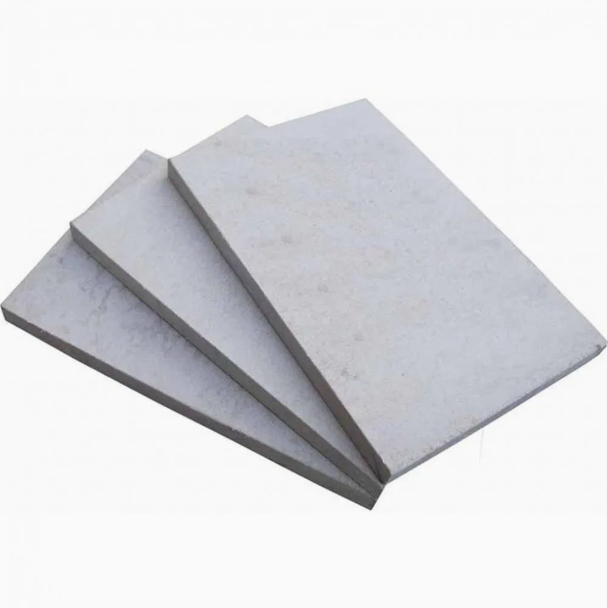

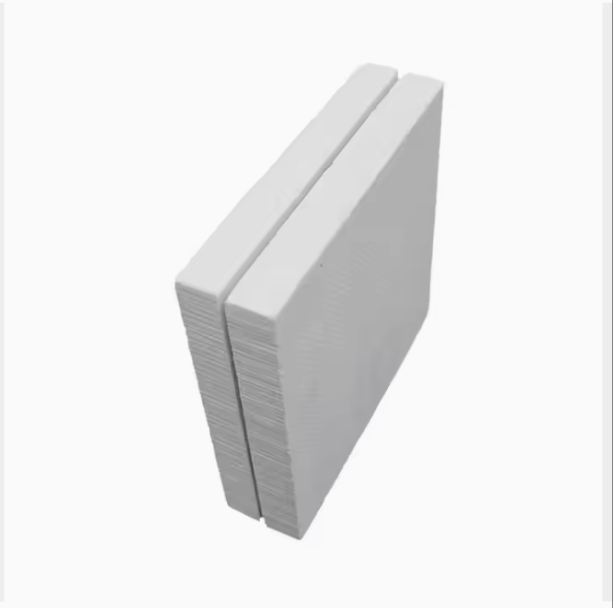

Fiber Reinforced Calcium Silicate Board
Fiber Reinforced Calcium Silicate Board(also known as Calcium Silicate Board)is a new type of lightweight building panel made from siliceous materials(quartz powder,diatomite,etc.)and calcareous materials(cement,lime,etc.)as main raw materials,with reinforcing fibers(cellulose fiber,alkali-resistant glass fiber,etc.,100%asbestos-free)added,and processed through pulping,forming,pressing,high-temperature and high-pressure steam curing,and surface sanding.
Phone ：+86 15563544445
WhatsApp ：+86 15563544445
Email ：wsun92686@gmail.com
Message
product description

Product Description

Fiber Reinforced Calcium Silicate Board(also known as Calcium Silicate Board)is a new type of lightweight building panel made from siliceous materials(quartz powder,diatomite,etc.)and calcareous materials(cement,lime,etc.)as main raw materials,with reinforcing fibers(cellulose fiber,alkali-resistant glass fiber,etc.,100%asbestos-free)added,and processed through pulping,forming,pressing,high-temperature and high-pressure steam curing,and surface sanding.The product forms a stable structure dominated by tobermorite crystals through steam or high-pressure steam curing,featuring lightweight,high strength,fire resistance,moisture resistance,thermal insulation,and low deformation rate.The product is 100%asbestos-free,non-radioactive and free of other harmful substances,recognized as a green design product.

Product Specifications

ItemSpecification
Standard Sizes2440×1220mm,2400×1200mm
Other Sizes3050×1220mm,1800×900mm(customizable)
Common Thickness5mm,6mm,8mm,9mm,10mm,12mm
Thickness Range4~30mm(customizable)
Density0.9~1.7 g/cm³(medium to high density options)
Fire RatingClass A1 Non-combustible(GB8624)
Bending StrengthLongitudinal≥9MPa,Transverse≥7MPa
Moisture Movement≤0.25%
Thermal Conductivity≤0.25~0.29 W/(m·K)
Moisture Content≤10%
ColorGrey,White(standard),surface coating customizable
Advantages and Applications

Key Advantages

Class A1 Fireproof&Non-Combustible:Meets the highest fire rating A1.Does not deform under high temperatures;fire resistance temperature exceeds 1200°C.Does not burn or emit toxic smoke,meeting strict fire resistance requirements for buildings.

Lightweight&High Strength:Density of 0.9~1.7 g/cm³—lightweight yet strong.Bending strength≥9MPa(longitudinal)and≥7MPa(transverse).Easy to handle and install,significantly reducing building structural loads.

Waterproof&Moisture Resistant:Made primarily of inorganic minerals,offering excellent waterproof and moisture resistance with long-lasting durability.Does not swell,deform,or rot in humid environments.Moisture movement≤0.25%.No bulging,cracking,or moisture regain.

Eco-Friendly&Green:100%asbestos-free,non-radioactive and free of other harmful substances.Made from plant fibers and natural inorganic minerals—a truly green building material.

Dimensional Stability:Forms a stable crystal structure through high-temperature and high-pressure steam curing.Low dry-wet deformation,minimal warping and cracking,ensuring dimensional accuracy during long-term use.

Sound&Thermal Insulation:Low thermal conductivity of 0.25~0.29 W/(m·K),providing excellent thermal insulation.Also offers superior sound insulation,suitable for noise-sensitive environments.

Easy to Process&Install:Can be sawed,nailed,and drilled without warping or cracking.Dry installation method is quick and convenient,shortening construction schedules and reducing labor costs.

Easy to Decorate:Smooth surface allows direct painting,wallpaper application,or tiling for rich colors and decorative effects.

Pest&Mold Resistant:Resistant to insects and rodents,with long service life.

Applications

Fiber Reinforced Calcium Silicate Board is widely used in building and decoration projects:

Interior Partition Walls:Lightweight wall systems for residential,office buildings,hotels,schools

Ceiling Systems:Suspended ceilings for commercial spaces,office buildings,public areas

Interior&Exterior Wall Cladding:Decorative and protective wall panels

Prefabricated Construction:Prefabricated decorative backing panels,composite wall panels

LOFT Flooring:18mm+thickness for loft flooring and elevated layers

Composite Sandwich Panel Faces:5mm or 6mm thickness for composite sandwich panel faces

Underfloor Heating Modules:Balancing and heat distribution panels

Curtain Wall Backing:Backing panels for curtain wall systems

Fire Door Cores:Core material for fire-rated doors

Industrial&Public Facilities:Airports,stations,hospitals,schools,theaters,gymnasiums,research institutions

Customized sizes and thicknesses are available according to customer requirements,project needs and destination market preferences.

Export Packaging and Consulting

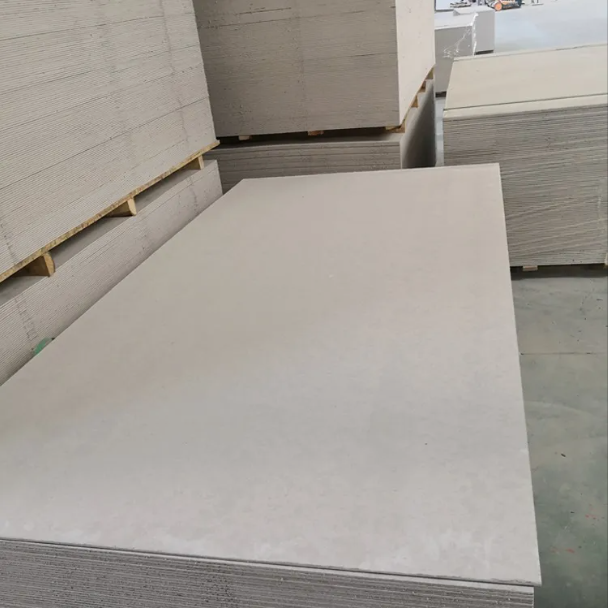

Packing and Loading

Fiber Reinforced Calcium Silicate Board is packed with export standard pallet packing.Each pallet is wrapped with plastic film for moisture protection and protected with carton or plywood covers,fixed with steel or plastic straps.Good packing helps reduce damage during handling,loading and long-distance transportation.

Regular container loading options include 20GP and 40HQ.Loading quantity depends on thickness,size,density and packing method.

Send Your Inquiry

Share your Fiber Reinforced Calcium Silicate Board requirements with us,and our team will recommend suitable specifications according to your application,market and project needs.

For a more accurate quotation,you can include the following details in your inquiry:

Thickness:4mm-30mm or customized thickness

Size:2440×1220mm,2400×1200mm or customized size

Density:Medium density or high density(0.9~1.7 g/cm³)

Application:Interior partition,ceiling,wall cladding,loft flooring,composite sandwich panel face,etc.

Certification Requirements:Class A1 fire rating,green building materials,etc.

Order Quantity:Pieces,pallets or container quantity

Destination Market:Destination country or port for packing and loading reference

We will provide product details,packing suggestions and quotation support as soon as possible.

Product Applications

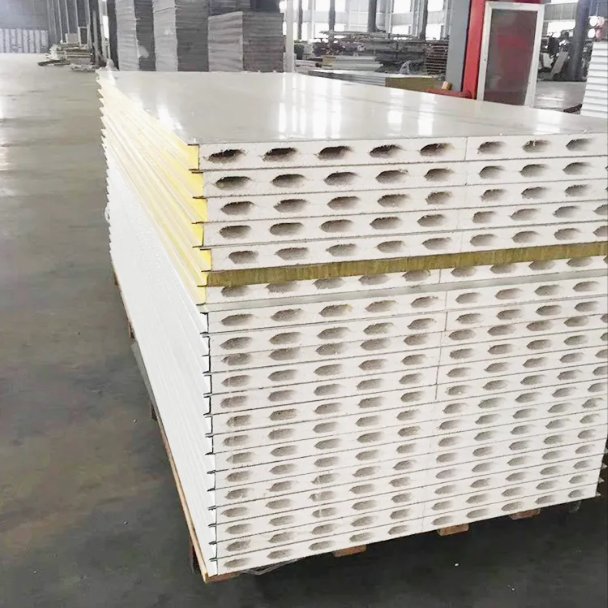

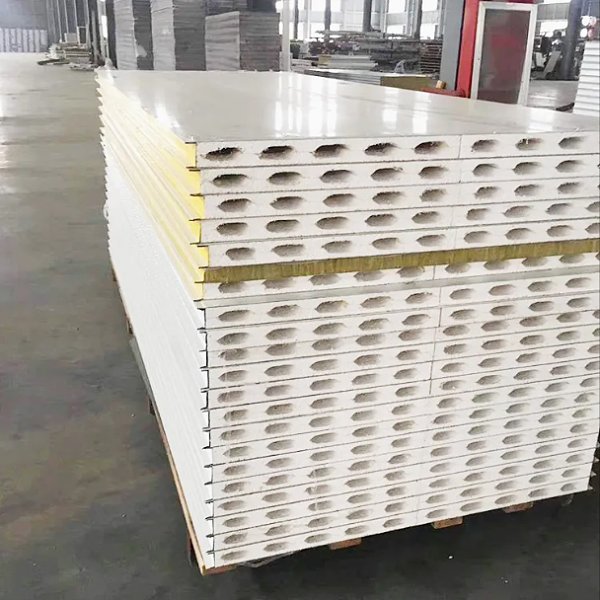

  • 低密度轻质硫氧化镁医院净化板_-_MOS_机制面板和净化夹芯板_cleanroomequipment.en.made-in-china.com_20260626022544_region

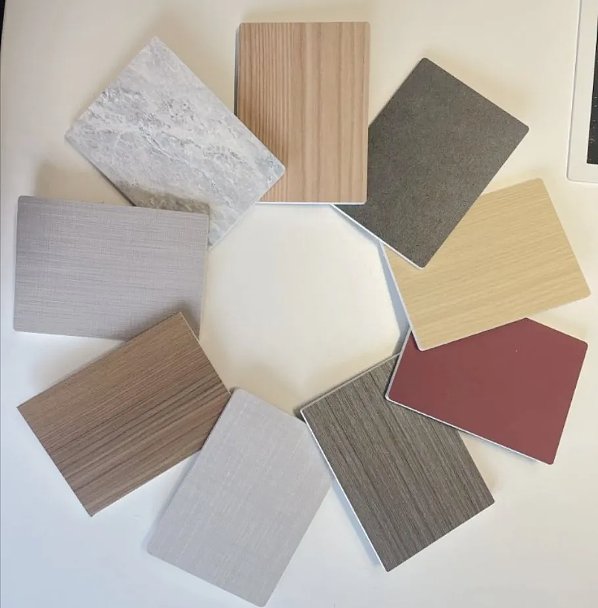

  • 用于室内装饰的HPLPVC复合氧化镁板_-_HPL复合氧化镁板和PVC复合氧化镁_weiranbuild.en.made-in-china.com_20260626031721_region

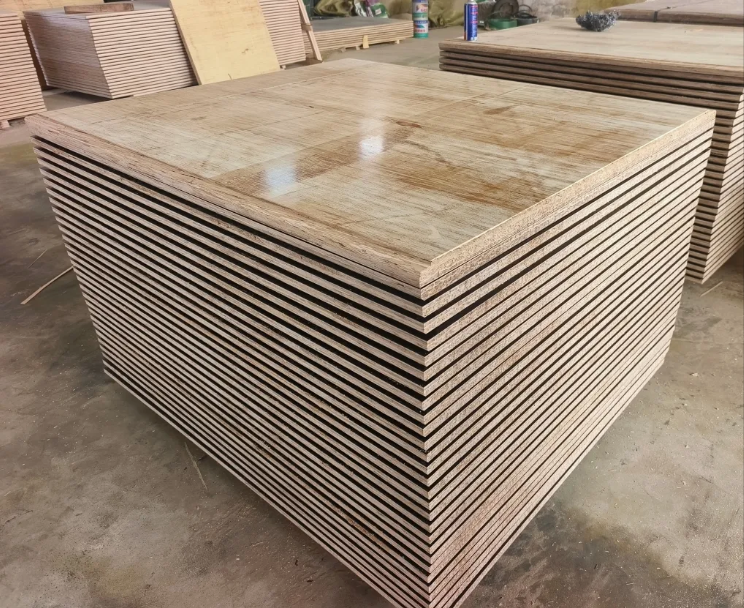

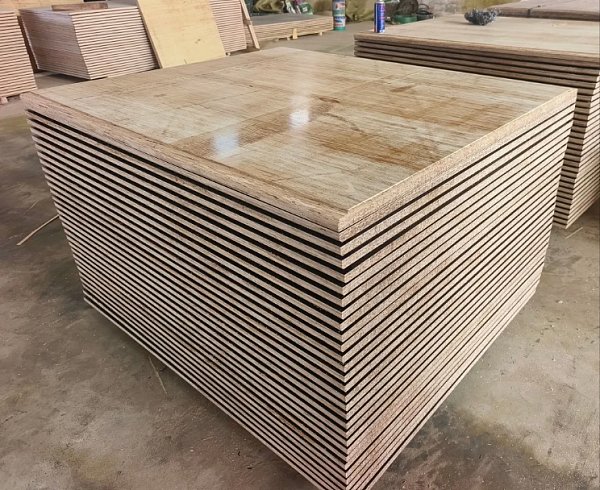

  • 28毫米耐磨货运集装箱胶合板地板_-_集装箱地板和集装箱胶合板地板_wfsuntop.en.made-in-china.com_20260626031921_region

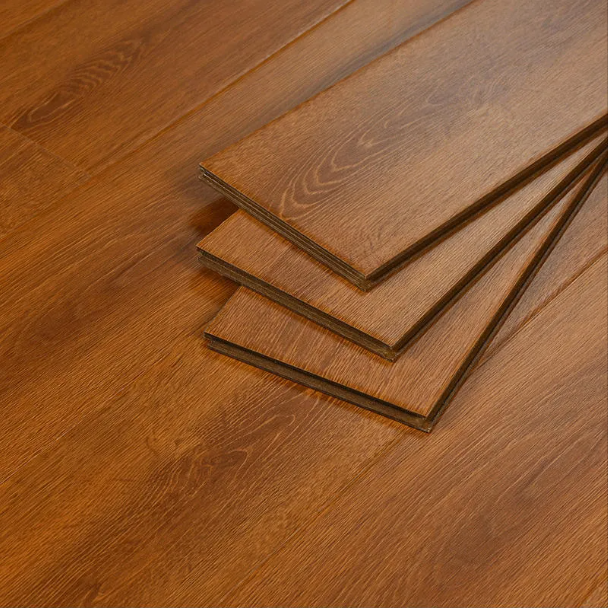

  • 厂家直销价整屋集装箱实木复合橡木亮面木地板_-_地板砖和建筑材料_sdluhuan.en.made-in-china.com_20260626032102_region
  • 厂家直销价整屋集装箱实木复合橡木亮面木地板_-_地板砖和建筑材料_sdluhuan.en.made-in-china.com_20260626032126_region

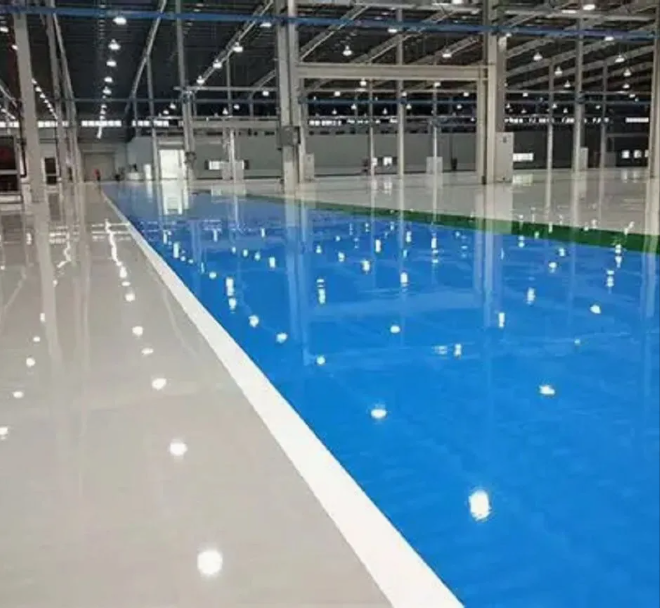

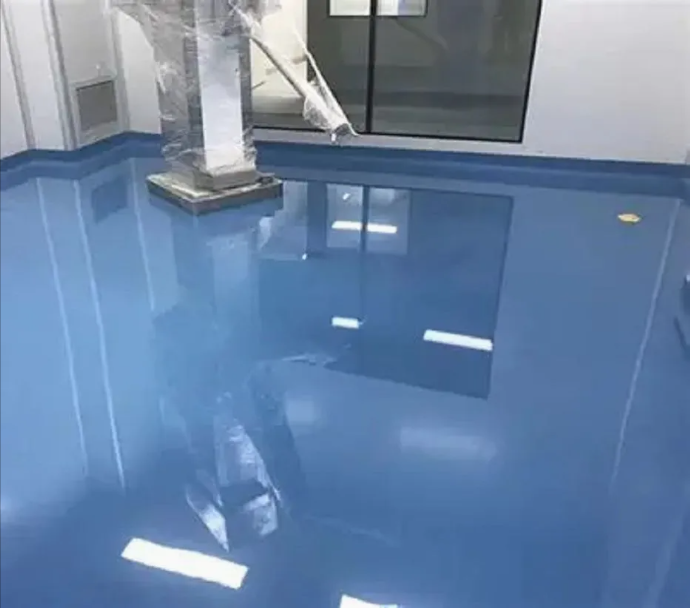

  • 出口级大理石纹理地坪漆，自流平车间地坪漆，户外耐磨环氧彩色砂地坪漆_-_环氧彩色_qdenze2006.en.made-in-china.com_20260626062212_region
  • 出口级大理石纹理地坪漆，自流平车间地坪漆，户外耐磨环氧彩色砂地坪漆_-_环氧彩色_qdenze2006.en.made-in-china.com_20260626062424_region
  • 出口级大理石纹理地坪漆，自流平车间地坪漆，户外耐磨环氧彩色砂地坪漆_-_环氧彩色_qdenze2006.en.made-in-china.com_20260626062524_region
  • 出口级大理石纹理地坪漆，自流平车间地坪漆，户外耐磨环氧彩色砂地坪漆_-_环氧彩色_qdenze2006.en.made-in-china.com_20260626062539_region

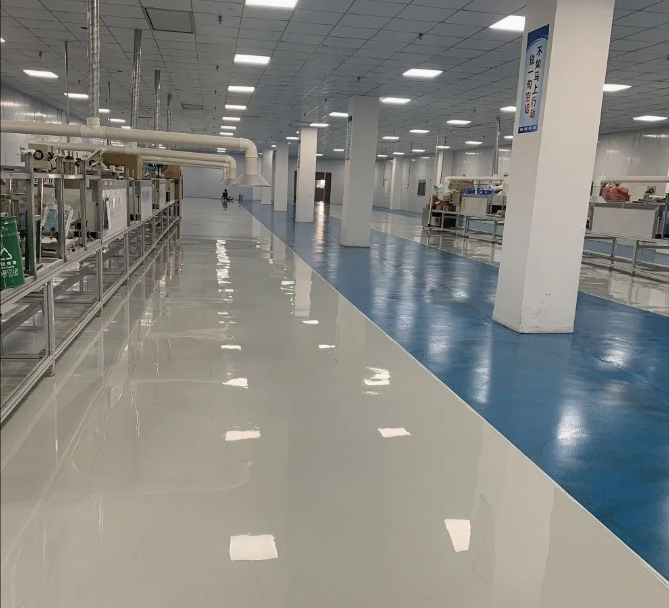

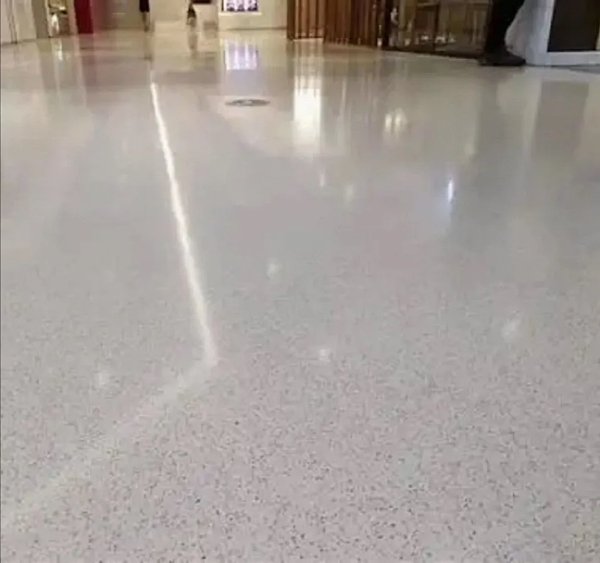

  • 环氧彩色砂面地坪漆，大理石纹理室内住宅防水防滑水泥地坪漆，自流平地坪漆_-_20_qdenze2006.en.made-in-china.com_20260626063146_region
FAQ
Q：

What types of paints/coatings do you offer,and which substrates are they suitable for?

A：
We provide comprehensive coating systems for various building boards,including water-based eco-coatings,fire-retardant coatings,and anticorrosion coatings.They can be customised according to different substrates(fibre cement,magnesium oxide,calcium silicate,etc.)and application environments(indoor,outdoor,humid conditions).
Q：

What are the features of Container Flooring HPL?

A：
HPL(High-Pressure Laminate)container flooring is made from multiple layers of kraft paper impregnated with thermosetting resin and combined with a decorative layer.It offers high abrasion resistance and high scratch resistance.Typical construction is plywood substrate with HPL overlay,thickness range 6-35mm,and sizes can be customised.
Q：

What is the fire rating and fire resistance limit of Magnesium Oxide Board?

A：
Magnesium Oxide Board achieves the highest non-combustible A1grade–it does not burn at 800°C,shows no flame at 1200°C,and has an ignition point as high as 2700°C.When used with quality steel framing,the partition system can achieve a fire resistance of over 3 hours.A 6mm board provides sound insulation of approximately 29dB.
Q：

What are the unique advantages of Fiber Reinforced Calcium Silicate Board?

A：
These boards are cured by steam or high-pressure steam to form a stable structure mainly composed of tobermorite crystals.They are lightweight,high-strength,fireproof,moisture-proof,heat-insulating,and have low deformation rates.Thicknesses of 5-12mm are suitable for interior partition walls and ceilings,while 18mm+boards are used for loft flooring and raised access floors for underfloor heating systems.
Q：

What specifications and densities are available for Fiber Cement Board?

A：
Standard sizes are 2000-2440mm in length and 1000-1220mm in width,with common thicknesses of 4-12mm(customisable from 2.5mm to 90mm in China).They are classified into high,medium,and low density–higher density and thicker boards provide better thermal and acoustic insulation.Products meet JC/T 412.1-2018 and JC/T 412.2-2018,with non-combustible A-grade,corrosion resistance,and electrical insulation properties.
Q：

What is the difference between Magnesium Oxysulfate Board and ordinary Magnesium Oxide Board?

A：
Magnesium Oxysulfate Board uses magnesium sulfate as the cementitious material,while traditional Magnesium Oxide Board(chloride-type)uses magnesium chloride.The biggest advantage of Magnesium Oxysulfate Board is that it does not absorb moisture or cause halogenation–chloride ions in chloride-type boards are hydrophilic and can attract moisture from the air under humid conditions,causing surface droplets and corrosion to metal.The sulfate type avoids these issues,offering excellent fire resistance,light weight,corrosion resistance,high dimensional stability,and low alkalinity.The industry standard for this product was finalised in 2021.
Q：

What is the substrate of Inorganic Pre-coated Board,and how ecofriendly is it?

A：
Inorganic Pre-coated Board is based on 100%asbestos-free calcium silicate board,which is then surface-treated and precision-coated.It contains no formaldehyde,no asbestos,and no radioactive elements,making it a green building material.In 2020,it was recognised as a Green Design Product by the Ministry of Industry and Information Technology(5th batch).
